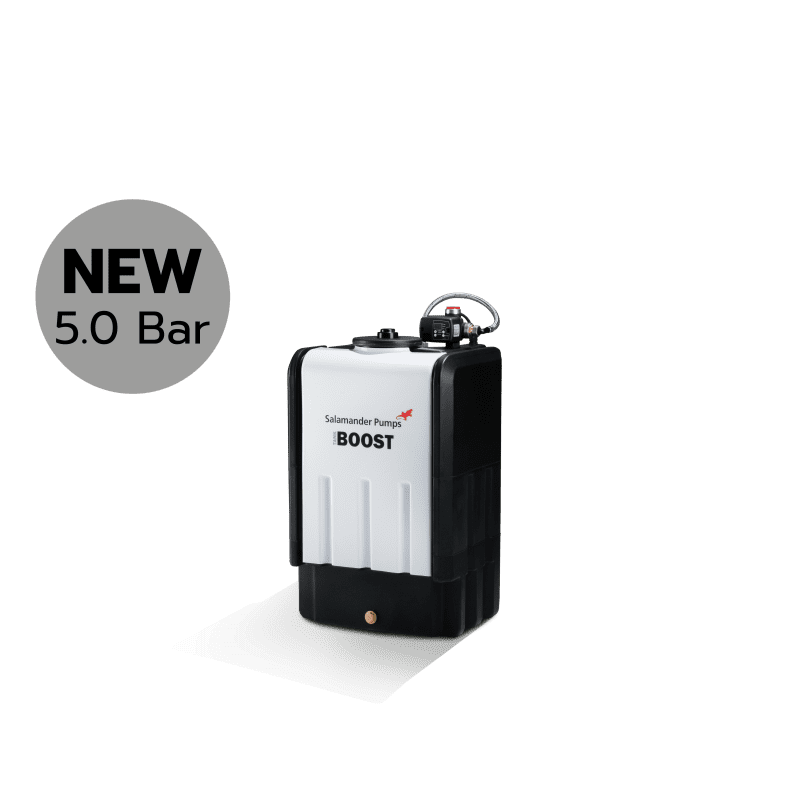

TankBoost 5 Bar 100L

5.0 Bar Mains Water Booster System 100L Tank

TankBoost 5 Bar will boost multiple outlets, across multiple floors, all at the same time, in a mains-fed system.

TankBoost is an all-in-one unit made up of a water storage tank and an integrated submerged pump. Additional cold water storage is boosted by an integral submersible pump to increase both pressure and flow, delivering up to 5.0 Bar and 120L/min.

Compared to the 3.0 bar model, the 5.0 bar pump is better suited for boosting water in taller buildings across multiple floors.

Additional water storage units are available to increase capacity.

Showers

Taps

Combination Boiler

Unvented Cylinder

Where to buy

TankBoost 5 Bar 100L

TNK5-100-SUB

General

Warranty

2 years

Noise Rating

dBA

46.8

Usable Water

Tank Size (litres)

100

Dimensions

Height (mm)	910
Width (mm)	520
Depth (mm)	500

Weights

Empty Weight (kg)	36.3
Filled Weight (kg)	136.3

Pump

Pump Type	Submersible Centrifugal Multi-Stage Pump
Pump Body/Impeller	Stainless Steel
Enclosure Protection	IP55

Electrical

Power Supply	230V, 50Hz
Current (Full Load)	6.6A
Power Consumption	1340W
Cable Length	8m (Plug not supplied)
Fuse Rating	10A

Connections

Inlet Connection	1/2" BSP Male
Outlet Connection	1" BSP Female

Performance

Maximum Pressure	5 Bar/500kPa
	120lpm

Water Temperature

4°C - 20°C

Pressure Vessel

8L Vessel with 3.5 Bar Air Pre-Charge

Boost Water Flow to a Shower Salamander Pumps

Boost water pressure and flow

Delivers pressure up to 5.0 Bar and increases water flow up to 120L/min.

Submersible pump

TankBoost features a high-quality, stainless steel pump.

Boost Water Flow Multiple Outlets Tap, Shower, Toiler Cistern, Hose

Use multiple outlets at the same time

Showers, taps and other outlets can be used simultaneously.

Warranty

2 years warranty.

Compatibility

TankBoost 100L is suitable for properties with a mains fed system, such as a combination boiler or unvented cylinder.

Toilet

Wash basin

Washing machine

Dishwasher

Instant electric shower

Thermostatic mixer shower

Drench shower head

Multi-function shower head

Body jets

Downloads

View all

Brochure

MainsBooster brochure

Installation Guide

TankBoost installation guide

Flyer

TankBoost flyer

Can TankBoost water booster be used on combi boilers and unvented systems?

Yes, TankBoost is ideal for delivering pressure and the higher flow rates required to unvented systems up to 80 litres per minute. TankBoost can also be used to supply combi-boilers, however, combi-boilers may restrict the flow rate of hot water that can be produced.

Can you use TankBoost to pump hot water?

No, TankBoost has been designed for cold water only, it can however be used to increase cold water flow rates and pressure to any mains hot water system such as unvented cylinders and combi boilers.

What pipework connections does the TankBoost have?

All TankBoost units have a ½” brass male inlet connection and 1” female outlet. It is recommended to have 28mm diameter pipework from the TankBoost so as not to restrict the potential flow rates from the unit. This can then be reduced to 22mm or 15mm pipework closer to the outlets.
