AquaScan

AquaScan can be used to measure pressure, flow, temperature, and hardness (TDS/EC) whenever there is a need to record accurate measurements.

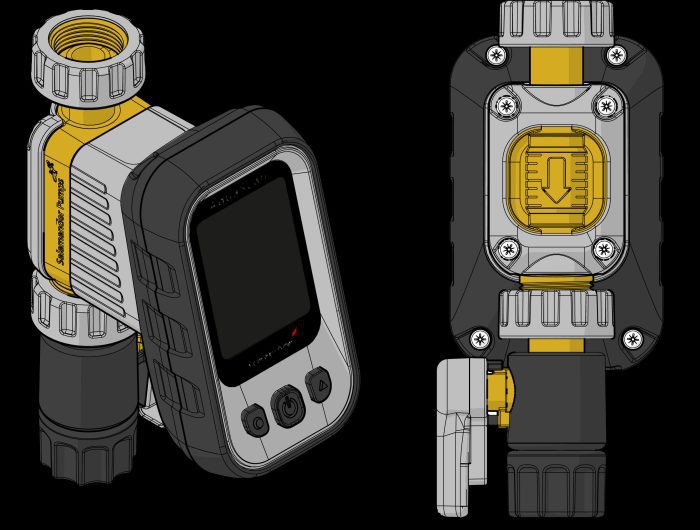

The AquaScan is a portable, handheld unit which can be used at an outlet and requires no permanent install into a system to obtain readings of water flow, pressure, temperature, and hardness.

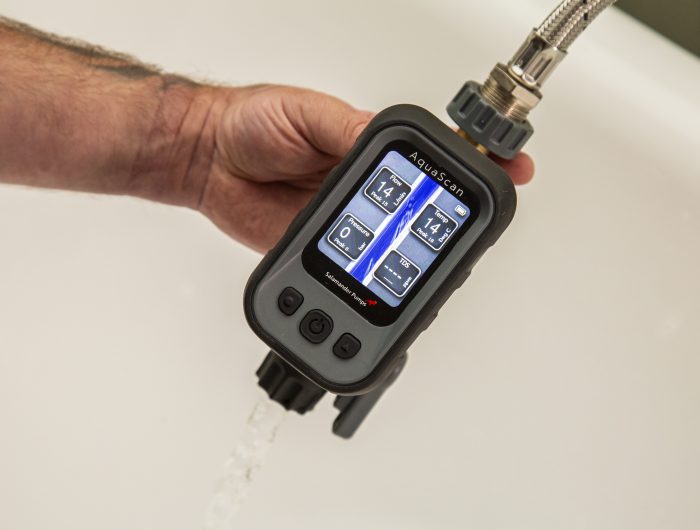

• Connect AquaScan to the outlet.
• Take three measurements from the live ‘Flow’ reading.
• Calculate the average of the three measurements.

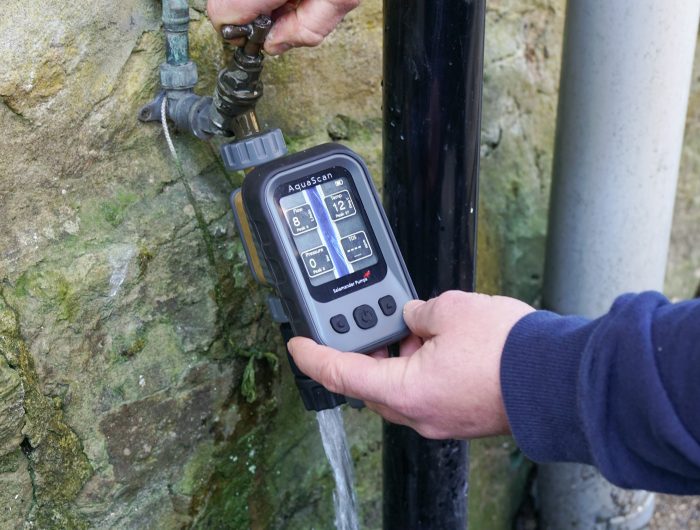

A garden tap is the best location to measure the incoming flow rate. When this isn’t possible, such as in properties where there is no outside tap, measuring the flow rate while multiple outlets are open is the best way to calculate the incoming flow rate. As this ensures any restrictive outlets do not impact the measurement.

• Attach AquaScan to one outlet and turn on. Record the flow rate.
• Open another outlet (so both are turned on).
• Check the flow rate on AquaScan:
  • If the flow rate remains the same, then continue to open further outlets until it decreases.
  • If the flow rate decreases, use AquaScan to measure the flow rate at each outlet (all outlets must remain turned on), make a note of the flow rate in the specification notepad. Add together the flow rates to determine the total flow rate.

• Connect AquaScan to the outlet.
• Ensure that the lever is in the closed position.
• Take three measurements from the live ‘Pressure’ reading. Calculate the average of the three measurements.

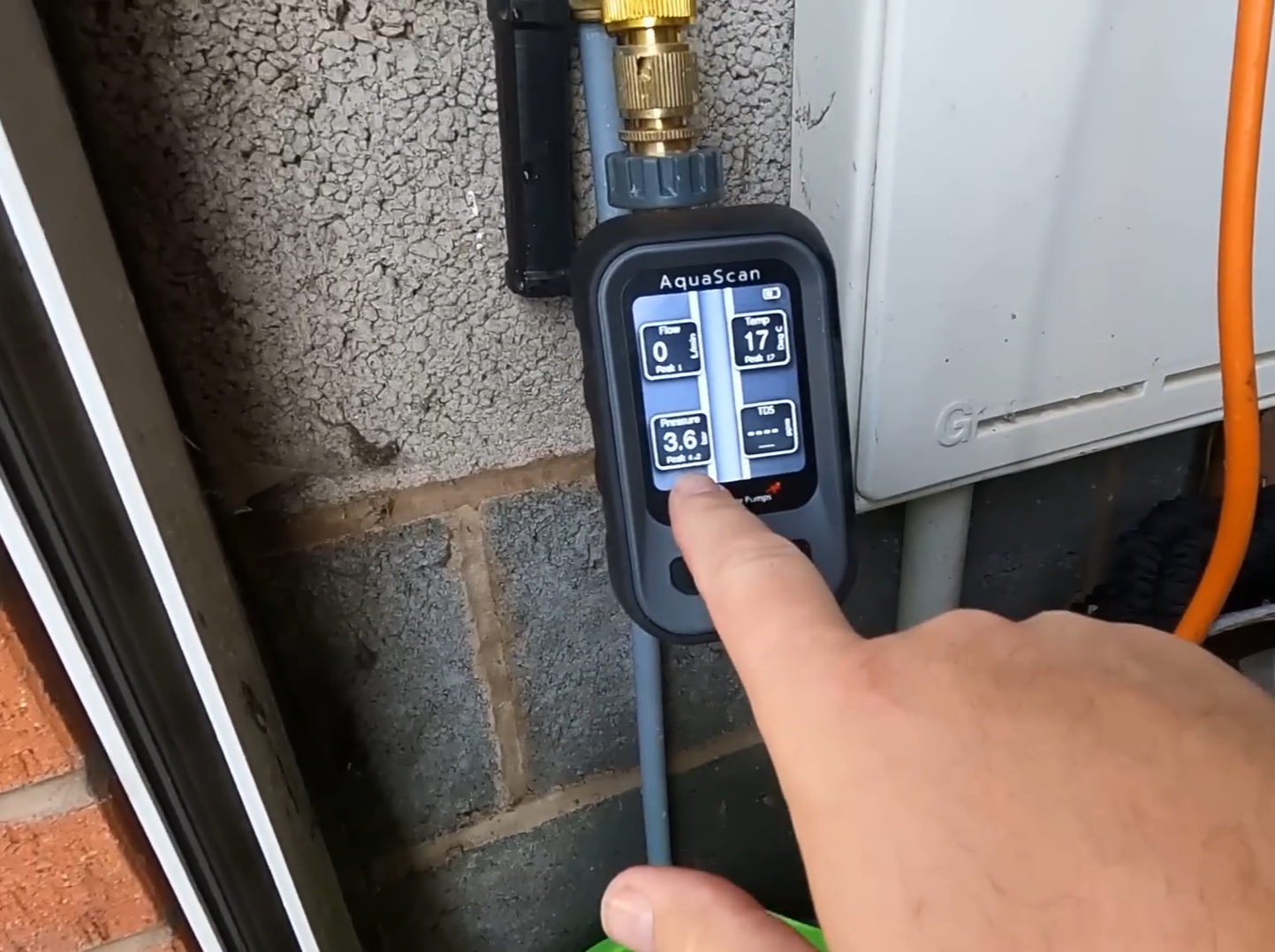

Static Pressure Test

• Allow flow through the unit and then close the isolation valve on the outlet of the unit.
• Ensure all outlets in the property are closed during test.
• Record the “Pressure” reading shown on the screen.
• Open the isolation valve to allow water to flow and then turn off the outlet.

Note: the pressure should always read “0.0” before removing the unit from the outlet

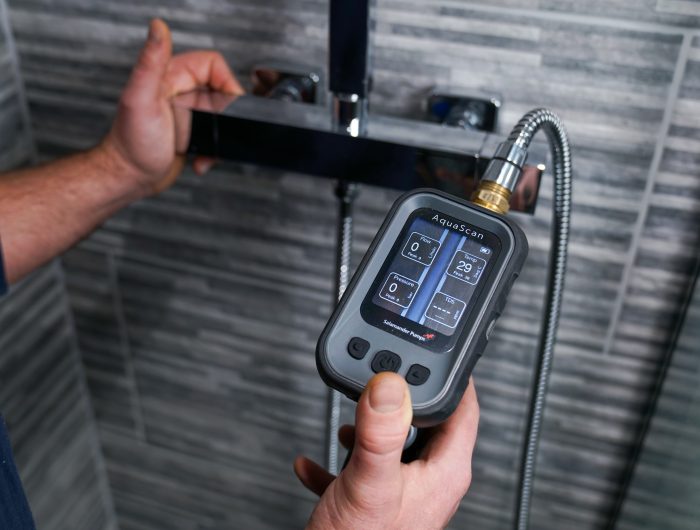

Dynamic Pressure Test

• Fully open the isolation valve on the outlet of the unit.
• Open the outlet and allow flow through the unit until the desired flow rate is reached.
• Record the “Pressure” reading shown on the screen.
• Turn off the outlet.

Note: the pressure should always read “0.0” before removing the unit from the outlet

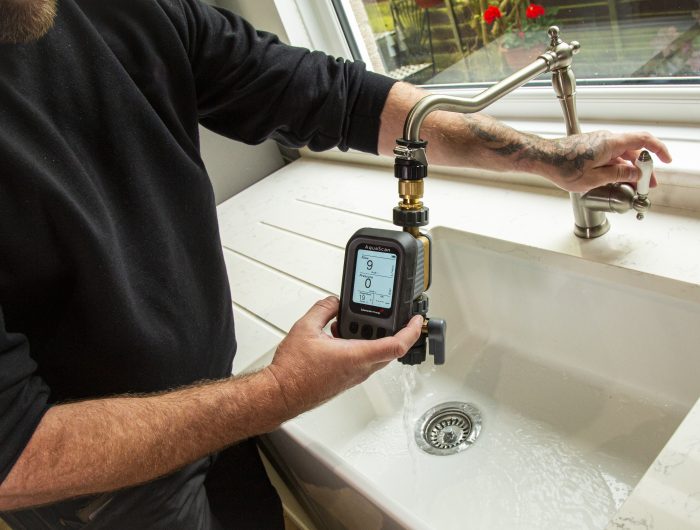

• Connect AquaScan to the outlet.
• Ensure that the lever is in the closed position.
• Open the isolation valve on the outlet of the unit and position over a suitable container for the flow to discharge into such as a basin or bucket.
• Fully open the outlet to allow water to flow through the unit.
• Record the “Temperature” reading shown on the screen.

Note: It is advised to allow water to flow through the unit for 30-60 seconds for a more accurate reading.

• Connect AquaScan to the outlet.
• Ensure that the lever is in the closed position.
• Settling time (minimum of 30 seconds) – for accurate reading.

Static water – won’t show if there is a flow of water. Water hardness should be tested before a water softener to measure TDS/EC (total dissolved solids/electrical conductivity).

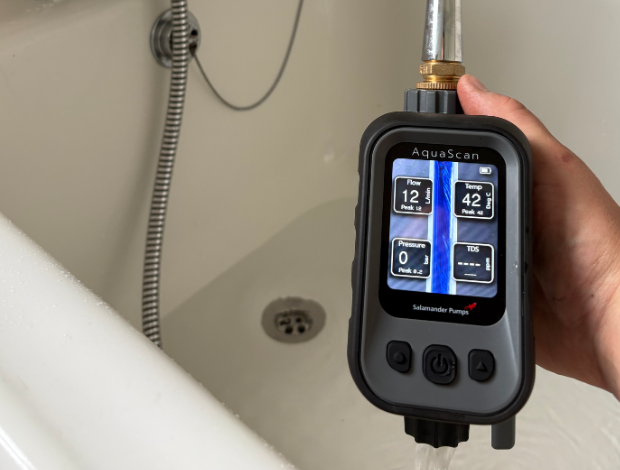

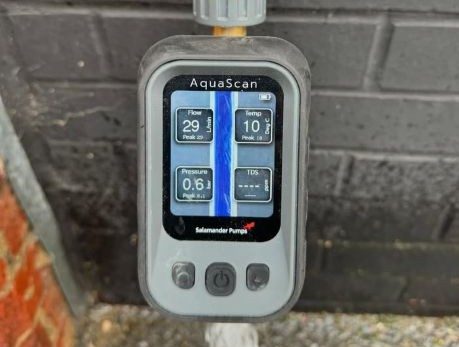

AquaScan provides live readings. It also shows ‘peak’ readings when taking a measurement to accommodate any fluctuations when testing.

AquaScan is suitable only to test clean water flow, pressure, temperature and hardness. The device shouldn’t be use for testing any other liquids (dirty water, oil, etc.)
